In the dynamic realm of electronics, specific transistors have not only endured but have become enduring pillars, firmly establishing themselves as foundational components across diverse applications. Their resilience and versatility mark them as indispensable elements, weaving through the intricate fabric of modern technology.
2N3904 NPN Bipolar Junction Transistor
Distinguished by its pervasive presence, the NPN transistor, 2N3904, is renowned for its versatility in general-purpose applications. Its technical attributes enhance its reliability, featuring a robust maximum collector current of 200mA, a collector-emitter voltage reaching 40V, and an efficient power dissipation of 625mW. These characteristics collectively establish the 2N3904 as a stalwart workhorse within electronic circuits, embodying the seamless integration of efficiency and adaptability in the ever-evolving landscape of electronics.
Applications: Widely used in amplification and switching circuits, the 2N3904 finds a place in consumer electronics, educational projects, and various signal processing applications.

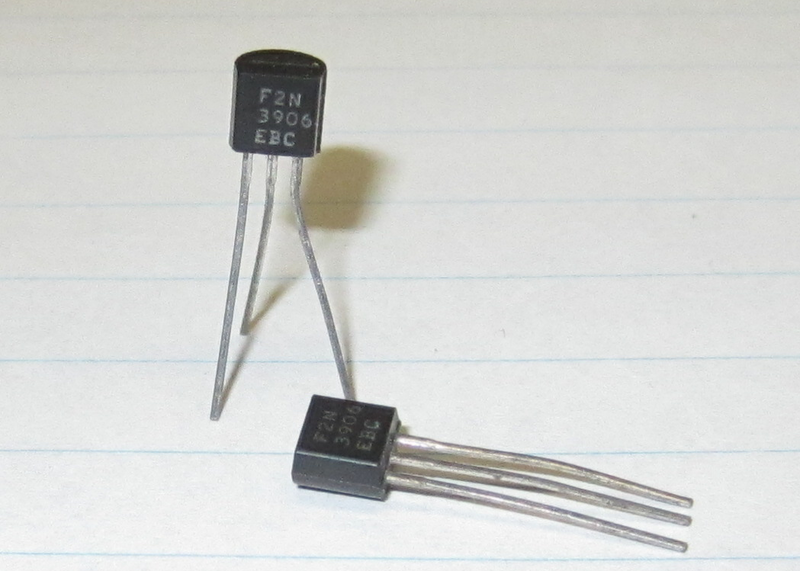

2N3906 PNP Bipolar Junction Transistor
In tandem with its counterpart, the 2N3906 emerges as a PNP transistor with akin specifications, aligning seamlessly with the legacy of the 2N3904. Bolstered by a maximum collector current of 200mA, a collector-emitter voltage spanning 40V, and a power dissipation capability of 625mW, the 2N3906 mirrors its NPN counterpart in prowess. This synchronized set of technical characteristics underscores the cohesive nature of these transistors, rendering them a harmonious duo in electronic circuits. With shared attributes, the 2N3906 complements the 2N3904, contributing to a symphony of performance and reliability within the intricate realm of electronic design.
Applications: Like its NPN counterpart, the 2N3906 is employed in amplification and switching applications, completing the NPN-PNP pair often found in electronic circuits.
2N5457 Junction Field Effect Transistor (JFET)
Distinguished by its role in low-power amplification circuits, the 2N5457 JFET stands out for its precision. With a maximum drain-source voltage of 25V and minimal input capacitance, it emerges as the ideal choice for applications demanding meticulous amplification of low-frequency signals. The technical finesse of the 2N5457 positions it as a linchpin in scenarios where precision and efficiency are paramount, solidifying its reputation as a stalwart component in the intricate tapestry of electronic design.
Applications: Commonly used in audio applications, the 2N5457 is favored for its simplicity and efficiency in low-frequency signal amplification.
IRF520 Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET)
Renowned in power electronics, the IRF520 MOSFET emerges as a stalwart workhorse, seamlessly navigating the realms of robust performance. With an impressive drain-source voltage capability reaching 100V and a continuous drain current of 9.2A, this MOSFET stands as a robust choice meticulously tailored for power switching applications. Its technical prowess positions it at the forefront of electronic design, where the demand for reliability and efficiency is paramount. The IRF520, with its formidable characteristics, epitomizes the synergy between technical ingenuity and practical utility in the dynamic landscape of power electronics.
Applications: Widely utilized in power amplifiers, voltage regulators, and motor control circuits, the IRF520 is a cornerstone in systems requiring efficient power handling.
TIP120 Darlington Bipolar Junction Transistor
Distinguished by its specialized design, the TIP120 NPN transistor stands as a paragon for high-voltage applications. Crafted as a Darlington pair, it boasts a formidable collector-emitter voltage of 60V and sustains a continuous collector current of 5A. The TIP120’s technical finesse makes it an exemplary choice in scenarios demanding both high voltage and current capacities, showcasing its pivotal role in robust electronic designs where reliability and performance take center stage. In the intricate landscape of electronic components, the TIP120 establishes itself as an enduring asset, embodying the harmonious blend of precision and power.
Applications: Frequently used in power switching applications, such as relay driving and motor control, the TIP120 excels in scenarios demanding high current and voltage capabilities.
Conclusion
These five transistors, with their distinct characteristics and versatile applications, represent the cornerstone of electronic design. Whether in amplification, switching, or power control, these components continue to play a pivotal role in shaping the landscape of modern electronics.
