Biped robots, which mimic human locomotion, are a popular challenge for robotics enthusiasts. These robots require precise control over multiple servos, real-time processing, and reliable communication with sensors. Selecting the right development board is crucial to ensure smooth motion, stability, and efficient power management.
A typical biped robot utilizes between 12 and 20 servo motors, requiring multiple PWM outputs for smooth movement. Additionally, processing power is a key factor, with entry-level boards like Arduino Mega 2560 operating at 16 MHz, while high-performance options like the Teensy 4.1 run at 600 MHz, allowing for real-time kinematic calculations. Connectivity also plays a major role, with Raspberry Pi 4 offering dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth 5.0, making it ideal for cloud-based applications and remote control.
Furthermore, energy efficiency is critical, as battery-powered biped robots typically operate on 7.4V to 12V LiPo batteries. Power management features on boards like the ESP32, which consumes as little as 5 µA in deep sleep mode, can extend operational time significantly. Understanding these specifications helps enthusiasts optimize their designs for better performance and longevity.
Key Features of a Development Board for Biped Robots
When selecting a development board, consider the following key features:
- Processing Power: Required for inverse kinematics, real-time control, and AI applications.
- PWM Outputs: Essential for controlling multiple servos used in biped robots.
- Connectivity: Support for communication protocols like I2C, SPI, and UART for sensor integration.
- Power Management: Must efficiently handle motors and servos without overheating or overloading.
- Expandability: Should support additional modules like cameras, LiDAR, or IMUs for better navigation and balance.
Comparison of Popular Development Boards

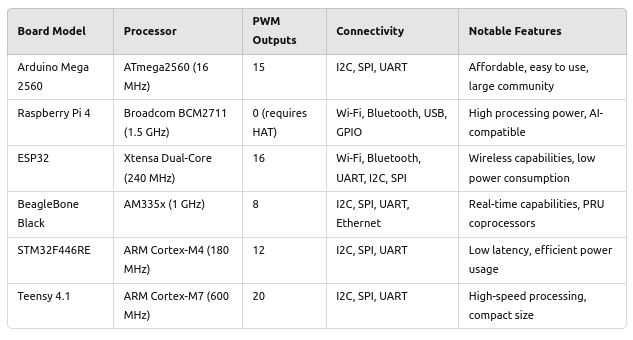

The table below provides a comparative analysis of widely used development boards in biped robotics.
Popular Development Boards and Their Applications

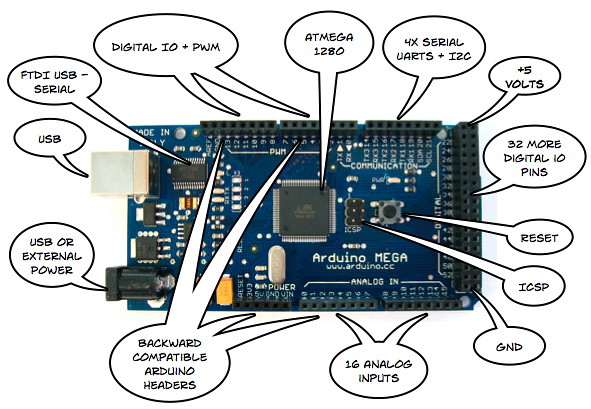

1. Arduino Mega 2560
Best For: Beginners and simple biped robots.
- Supports up to 15 servos without extra hardware.
- Large community and extensive documentation.
- Used in projects like Zowi, an open-source biped robot.
2. Raspberry Pi 4
Best For: AI-powered biped robots with vision processing.
- Can run ROS (Robot Operating System).
- Ideal for projects requiring machine learning.
- Used in OpenBiped, a research-based humanoid project.
3. ESP32
Best For: Wireless-controlled biped robots.
- Low power consumption, making it suitable for battery-powered robots.
- Built-in Wi-Fi and Bluetooth enable IoT-based control.
- Used in small humanoid robots for educational purposes.
4. BeagleBone Black
Best For: Real-time applications requiring high accuracy.
- PRU (Programmable Real-time Unit) allows low-latency servo control.
- Supports multiple expansion capes for additional functionality.
- Used in advanced robotics projects requiring precise movement.
5. STM32F446RE
Best For: Real-time control with minimal latency.
- ARM Cortex-M4 processor offers fast execution times.
- Suitable for industrial and research-grade biped robots.

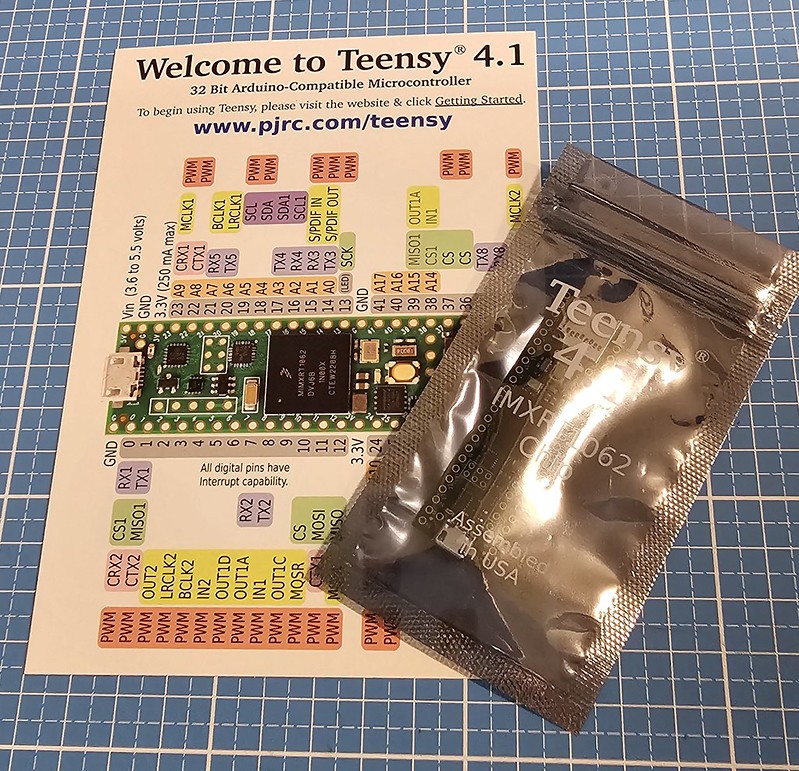

6. Teensy 4.1
Best For: High-performance applications in compact robots.
- Features 600 MHz processing power with a small form factor.
- Best for applications where size and speed are critical.
Example Projects Using These Development Boards
Zowi (Arduino Mega 2560)
Zowi is an open-source, 3D-printed biped robot powered by an Arduino Mega 2560. Designed for educational purposes, it helps children and beginners explore robotics, programming, and electronics through interactive activities. Featuring servomotors for movement, sensors for obstacle detection, and Bluetooth connectivity, Zowi can be programmed using Arduino IDE or block-based coding platforms like Bitbloq. Its modular design allows customization, making it ideal for STEM education. Schools and makerspaces use Zowi to introduce concepts such as kinematics, automation, and AI in a hands-on way, fostering creativity and problem-solving skills in young learners.
OpenBiped (Raspberry Pi 4)
OpenBiped is a modular, AI-powered bipedal robot that harnesses Raspberry Pi’s processing capabilities for advanced machine learning and vision-based control. Equipped with a camera, IMU sensors, and servo-actuated joints, it can recognize objects, track movements, and adapt its walking patterns using neural networks. Designed for research and education, OpenBiped supports Python-based programming and integrates with frameworks like TensorFlow and OpenCV. Its open-source architecture allows customization, making it ideal for robotics enthusiasts, universities, and developers exploring AI-driven locomotion, computer vision, and human-robot interaction in real-world applications.
Mini Humanoid (ESP32)
This compact humanoid robot, powered by an ESP32, features Bluetooth connectivity for seamless remote control and IoT integration. Designed for versatility, it supports Wi-Fi communication, enabling cloud-based interactions and real-time monitoring. Its servo-driven limbs allow precise movements, while onboard sensors enhance environmental awareness. Compatible with platforms like Arduino IDE and MicroPython, it offers flexibility for developers and educators. Ideal for robotics research, automation projects, and smart home applications, this open-source robot provides a hands-on approach to exploring AI, machine learning, and embedded systems, making it a valuable tool for both beginners and advanced users.
BeagleBot (BeagleBone Black)
This sophisticated humanoid robot is designed for AI research, utilizing BeagleBone’s real-time processing to achieve precise motion control, machine learning, and autonomous decision-making. Equipped with high-torque servo motors, depth cameras, and IMU sensors, it excels in object recognition, speech processing, and adaptive behaviors. Supporting frameworks like ROS, OpenCV, and TensorFlow, it facilitates advanced research in human-robot interaction, computer vision, and AI-driven automation. Its open-source design allows customization, while Wi-Fi and IoT integration enable remote operation and cloud-based data processing. Ideal for universities and robotics labs, it provides a powerful platform for exploring next-generation AI applications.
Conclusion
Choosing the right development board depends on the specific needs of a biped robot project. For beginners, Arduino Mega 2560 provides an easy-to-use platform with extensive community support. Advanced users can opt for Raspberry Pi 4 or BeagleBone Black for high-performance applications. Those looking for wireless capabilities should consider ESP32. Regardless of the choice, each board offers unique strengths suited for different aspects of biped robotics.
By understanding the strengths of each platform, robotics enthusiasts can optimize their designs and create efficient, well-balanced biped robots.
