Lightning and electrical surges are common natural phenomena that can wreak havoc on electrical systems and structures. To protect against these destructive forces, two essential devices come into play: the surge protector and the lightning rod. While they both serve to safeguard against electrical surges, they have distinct purposes, principles of operation, and installations. In this comprehensive guide, we will explore the differences between surge protectors and lightning rods, their applications, and their key features.
Understanding Surge Protectors :
1.1. What Is a Surge Protector?

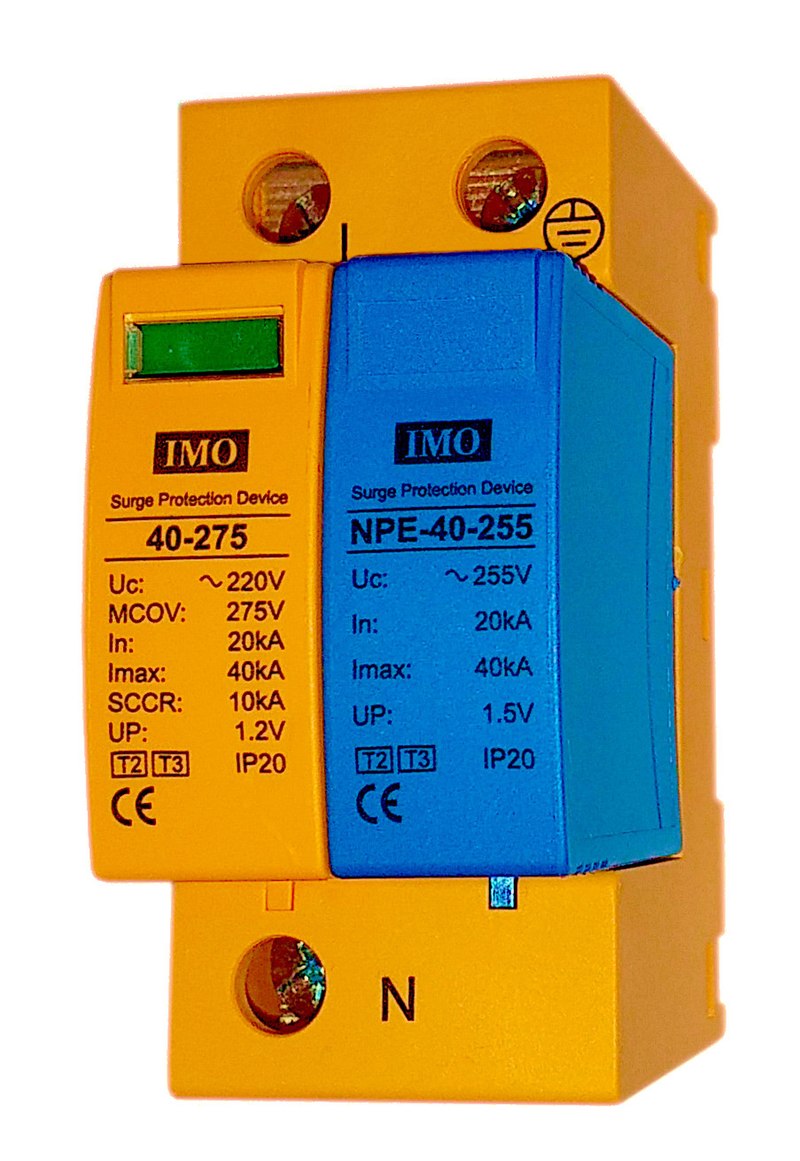

A surge protector, also known as a parafoudre in French, is a device designed to protect electrical and electronic equipment from voltage spikes or surges in the electrical supply. These surges can result from various sources, such as lightning strikes, switching of electrical appliances, or faults in the power grid.
1.2. How Does a Surge Protector Work?
Surge protectors work by diverting excess voltage away from sensitive electronic devices. They typically use metal oxide varistors (MOVs) or gas discharge tubes to shunt excess voltage to the ground, preventing it from reaching and damaging connected equipment.
1.3. Types of Surge Protectors:
a. Point-of-Use Surge Protectors: These are plug-in devices that protect individual appliances and electronics.
b. Whole-House Surge Protectors: Installed at the main electrical panel, these protect all appliances and devices in the house.
c. Data Line Surge Protectors: Designed to protect data lines, such as phone lines, Ethernet cables, and coaxial cables.
d. Surge Protector Strips: Power strips with integrated surge protection.
1.4. Applications of Surge Protectors:
Surge protectors are commonly used in homes, offices, and industrial facilities to safeguard sensitive electronic equipment like computers, televisions, and industrial machinery against voltage surges.
Lightning Rods:
2.1. What Is a Lightning Rod?
A lightning rod, or paratonnerre, is a device installed on buildings or structures to provide a safe path for lightning strikes to reach the ground. The purpose of a lightning rod is to protect the structure from lightning damage and minimize the risk of fire.
2.2. How Does a Lightning Rod Work?
A lightning rod consists of a metal rod, often connected to a network of conductors, that extends above the structure it protects. When lightning strikes, the rod attracts the electrical charge and provides a low-resistance path for the lightning current to follow, safely dissipating it into the ground.
2.3. Types of Lightning Rods:
a. Franklin Rods: Invented by Benjamin Franklin, these are the most common type of lightning rod and consist of a pointed metal rod.
b. Early Streamer Emission (ESE) Air Terminals: These rods are designed to trigger a lightning strike from a distance, reducing the likelihood of a direct strike on the protected structure.
c. Dissipation Array Systems (DAS): These systems use an array of air terminals to disperse the electrical charge of lightning.
2.4. Applications of Lightning Rods:
Lightning rods are used on various structures, including residential homes, commercial buildings, industrial facilities, agricultural structures, and historical landmarks, to protect them from lightning strikes and the resulting damage.
Differences between Surge Protectors and Lightning Rods:
3.1. Purpose and Function:
- Surge Protectors: Designed to protect electronic equipment from voltage surges.
- Lightning Rods: Designed to attract lightning strikes and provide a safe path for the lightning current to the ground.
3.2. Installation:
- Surge Protectors: Installed at the point of use or the main electrical panel.
- Lightning Rods: Installed on the exterior of buildings or structures.
3.3. Protection Mechanism:
- Surge Protectors: Divert excess voltage away from equipment to prevent damage.
- Lightning Rods: Attract lightning strikes and conduct the electrical charge safely to the ground.
3.4. Cost:
- Surge Protectors: Relatively inexpensive and can be installed individually.
- Lightning Rods: Installation cost can vary depending on the size and complexity of the structure.
When to Use Surge Protectors or Lightning Rods:
4.1. Residential and Commercial Buildings:
- Surge Protectors: Essential for protecting electronic devices and appliances.
- Lightning Rods: Recommended for buildings in areas prone to lightning strikes.
4.2. Industrial Facilities:
- Surge Protectors: Used to protect sensitive industrial equipment.
- Lightning Rods: Employed for large industrial structures.
4.3. Agricultural Structures:
- Surge Protectors: Valuable for protecting farm equipment and control systems.
- Lightning Rods: Commonly used to safeguard barns, silos, and other agricultural buildings.
4.4. Historical and Tall Structures:
- Surge Protectors: May be used in conjunction with lightning rods to protect valuable electronic systems.
- Lightning Rods: Often a primary method for protecting historical and tall structures.
Maintenance and Testing:
5.1. Surge Protector Maintenance:
- Periodic inspection for wear or damage.
- Replacement of damaged surge protectors.
- Regular testing to ensure functionality.
5.2. Lightning Rod Maintenance:
- Inspection for corrosion and damage.
- Testing of grounding systems.
- Repairs and replacements as needed.
5.3. Periodic Testing:
Surge Protectors: Check that indicator lights are functioning.
Lightning Rods: Test the continuity and integrity of the grounding system.
Conclusion:
Surge protectors and lightning rods, are both vital components in protecting structures and electronic equipment from electrical surges and lightning strikes, respectively. Understanding their differences, purposes, and applications is crucial for ensuring the safety and functionality of various buildings and equipment. By selecting the appropriate protection measures and maintaining them regularly, you
