Pull-down resistors play a crucial role in electronic circuits by ensuring stable logic levels at inputs. Without them, inputs can remain “floating,” leading to unpredictable behavior due to noise or interference. In digital circuits, such floating states can cause erratic switching between HIGH (1) and LOW (0), potentially leading to malfunctioning devices. For example, in a 5V logic system, an undefined input might oscillate between 0V and 5V due to ambient electromagnetic fields. A properly chosen pull-down resistor, typically ranging from 4.7kΩ to 100kΩ, stabilizes the input, reducing noise and preventing unwanted triggering. This is essential in microcontrollers like Arduino and Raspberry Pi, where consistent input readings are necessary for reliable operation.
What is a Pull-Down resistor?
A pull-down resistor is a resistor connected between an input pin of a circuit and ground (GND) to define a logic LOW (0) state when no active signal is applied. It prevents the input from floating, which can cause erratic behavior.
Function of a Pull-Down resistor
- Prevents Floating Inputs: Ensures a well-defined logic level when no signal is present.
- Reduces Noise Susceptibility: Minimizes spurious triggering caused by electromagnetic interference.
- Improves Stability in Digital Circuits: Ensures reliable logic states in microcontrollers, logic gates, and sensor inputs.
Choosing the right Pull-Down resistor value
The resistance value should be selected to balance power consumption and signal integrity. A high resistance can lead to slow signal transitions, while a low resistance increases current draw.

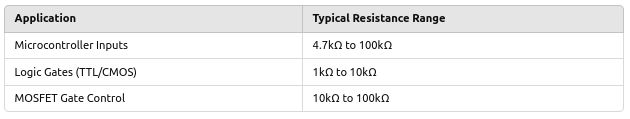

Typical resistance values
The pull-down resistance (R) is determined based on Ohm’s Law:
- is the supply voltage (e.g., 3.3V, 5V, 12V)
- is the acceptable leakage current (typically 0.1mA to 1mA)
Example for a 5V logic circuit with 0.5mA leakage current:
Practical examples with components
Example 1: Pull-Down resistor in a microcontroller input
- Component: Arduino Uno
- Circuit: A push-button is connected to an input pin with a 10kΩ pull-down resistor.
- Behavior: When the button is not pressed, the input reads LOW (0V). When pressed, the input gets pulled to HIGH (5V).
Example 2: Pull-Down resistor in MOSFET circuits
- Component: IRF540N MOSFET
- Circuit: A 47kΩ pull-down resistor is placed between the MOSFET gate and ground.
- Purpose: Ensures the MOSFET remains OFF when no control signal is applied.
Example 3: Pull-Down in logic circuits
- Component: 74HC00 NAND Gate
- Circuit: Unused inputs are connected to GND via 1kΩ resistors.
- Purpose: Prevents floating inputs that could cause unintended logic state changes.

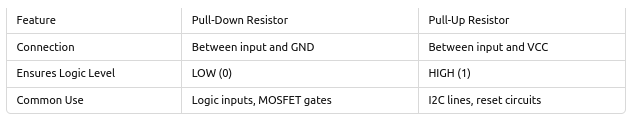

Pull-Down vs. Pull-Up resistors
Conclusion
Pull-down resistors are essential for ensuring reliable operation in digital and analog circuits. Choosing the right resistance value depends on the application, balancing stability, power consumption, and response time. Whether in microcontroller inputs, MOSFET circuits, or logic gates, pull-down resistors help maintain predictable and error-free operation.
