Is your circuit plagued by unwanted signal drift, excessive noise, or poor accuracy? Are you in need of an operational amplifier that ensures rock-solid precision? Look no further than the OP07, a legendary high-precision operational amplifier designed for demanding applications. With an ultra-low input offset voltage of just 75 µV (max) and an impressively low drift of 0.5 µV/°C, the OP07 guarantees exceptional stability over time and temperature variations. Its noise density of 0.3 µV/√Hz at 10 Hz minimizes unwanted fluctuations, making it ideal for precision instrumentation, medical devices, and sensor signal conditioning. Unlike standard op-amps, which often struggle with high common-mode rejection, the OP07 boasts a common-mode rejection ratio (CMRR) of 130 dB, ensuring accurate signal amplification even in noisy environments. Additionally, its open-loop gain of 1,500,000 (typical) allows for superior accuracy in feedback circuits, outperforming many general-purpose op-amps. Whether you’re designing precision analog circuits, strain gauge amplifiers, or high-resolution data acquisition systems, the OP07 delivers reliable, drift-free performance. Its wide supply voltage range of ±3V to ±22V enhances versatility across various applications. Experience the unmatched precision of the OP07 and eliminate inaccuracies in your designs.
What makes the OP07 stand out?
The OP07 is a monolithic operational amplifier designed for low offset voltage (75µV max) and minimal drift (0.5µV/°C max). Manufactured by multiple semiconductor companies such as Analog Devices and Texas Instruments, the OP07 is widely used in instrumentation, medical devices, and precision signal processing circuits.
Key features
- Ultra-Low offset voltage: Reduces the need for external compensation.
- Minimal drift over temperature: Ensures consistent performance in varying environments.
- High common-mode rejection ratio (CMRR): Enhances stability against unwanted interference.
- Low input bias current: Ideal for high-impedance circuits.
- Wide operating voltage range: Compatible with ±3V to ±22V supplies.
Why choose OP07 over other operational amplifiers?

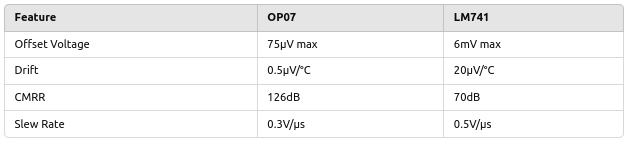

Many operational amplifiers claim to offer precision, but few can match the OP07 in terms of low offset voltage and stability. Compared to general-purpose amplifiers like the LM741, the OP07 provides superior accuracy and better noise performance.
Why choose OP07 over other operational amplifiers?
Many operational amplifiers claim to offer precision, but few can match the OP07 in terms of low offset voltage and stability. Compared to general-purpose amplifiers like the LM741, the OP07 provides superior accuracy and better noise performance.
If your application demands accuracy, the OP07 is the obvious choice.
Where Is OP07 used?
The OP07 finds applications in various industries where precision is paramount:
1. Instrumentation & measurement systems
The OP07 is widely used in data acquisition systems, precision voltage references, and sensor interfaces where even small errors can be catastrophic.
2. Medical equipment
Devices such as ECG monitors, infusion pumps, and biosignal amplifiers require ultra-low drift characteristics to ensure accurate readings over time.
3. Industrial automation
In process control systems, strain gauge amplifiers, and feedback loops, the OP07 ensures stable signal amplification without introducing unwanted noise or distortion.
4. Aerospace & defense
The OP07’s high reliability makes it suitable for radar systems, satellite electronics, and avionics where performance cannot be compromised.
How to use OP07 in your circuit
When integrating the OP07 into your design, consider the following:
1. Power supply considerations
The OP07 supports a wide voltage range (±3V to ±22V). Ensure your circuit provides a stable power source to maintain optimal performance.
2. Input & output configuration
The OP07 has a low input bias current (1.8nA typical), making it ideal for high-impedance sensors. However, using high-value resistors can introduce additional noise.
3. Compensation & stability
Unlike many older op-amps, the OP07 does not require external compensation, making it easier to implement in precision circuits.
4. Noise considerations
With a low noise density of 0.6µV/√Hz, the OP07 performs well in low-noise applications. However, shielding and proper PCB layout further improve performance.
The Million-Dollar Question: Is OP07 the Best Precision Op-Amp Available?
While the OP07 is a strong contender, is it the absolute best? The answer depends on your specific application.
- If low offset voltage and drift are critical, OP07 is a great choice.
- If you need higher speed and bandwidth, consider the OP27 or OPA627.
- If power consumption is a concern, modern CMOS op-amps like AD8628 may be better suited.
In most precision DC applications, the OP07 remains one of the most cost-effective and reliable choices.
Conclusion
The OP07 has stood the test of time as a go-to operational amplifier for precision applications. Whether you’re designing medical instruments, aerospace systems, or industrial automation circuits, the OP07 provides the accuracy and stability needed for critical tasks.
Would you trust the OP07 for your next precision project? Let us know in the comments!
Source futured image : Hard Find Electronics Tech Limited
