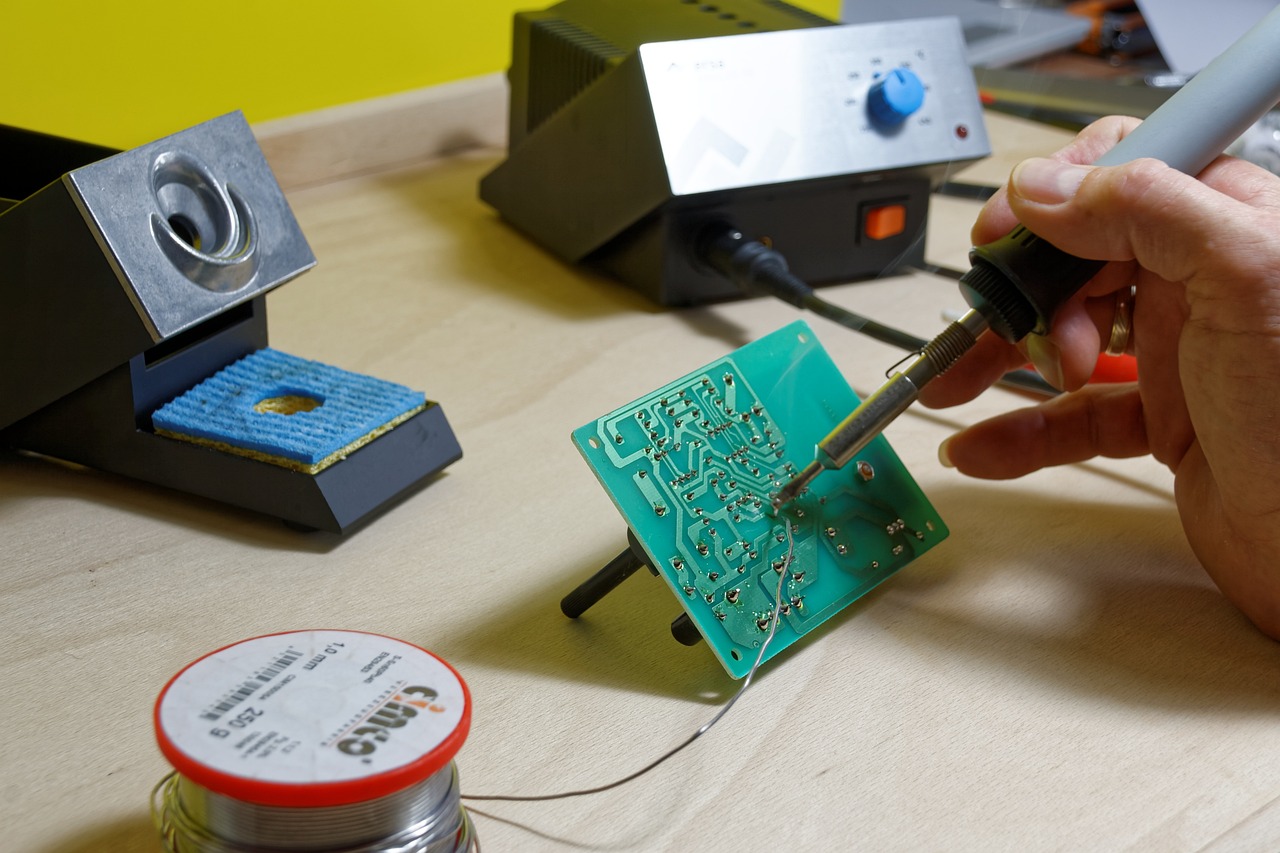

Electronics is at a crossroads, where traditional soldering methods face unprecedented challenges due to the ever-shrinking size and increasing complexity of electronic devices. As technology evolves, the industry is actively seeking and embracing alternative approaches to component mounting. In this era of electronic innovation, a fundamental shift is occurring, moving us away from the age-old practice of soldering. Instead, we are witnessing the rise of pioneering techniques that are revolutionizing the assembly of electronic circuits, rendering the soldering iron a relic of the past.
1. Conductive Adhesives
Conductive adhesives are a game-changer in the electronics industry. They are formulated with conductive particles and provide a secure bond between components. These adhesives can be applied as a paste or film, offering a solder-free method of attaching components to a circuit board.
2. Press-Fit Connectors
Press-fit connectors are mechanical components designed to create a gas-tight connection between a component lead and the plated through-hole on a circuit board. This method is particularly advantageous for high-reliability applications, as it eliminates the risks associated with soldering, such as thermal stress and potential damage to sensitive components.
3. Solderless Breadboards
Solderless breadboards are a staple in the world of prototyping and education. These boards consist of a matrix of interconnected holes, allowing for component placement without the need for soldering. It’s a valuable tool for testing and experimenting with electronic circuits.
4. Wire Wrapping
Wire wrapping is a technique that involves tightly wrapping a wire around a post or terminal on a pin to create an electrical connection. It’s a reliable method for assembling circuits, often used in high-reliability applications such as avionics.
5. Surface Mount Technology (SMT)
SMT technology has revolutionized the manufacturing of electronic devices. Instead of through-hole soldering, SMT components are placed directly onto the surface of the circuit board, where solder paste is used to secure them. This eliminates the need for a soldering iron in the assembly process.
6. Plated Through-Hole Technology (PTH)
PTH technology combines the benefits of both through-hole and surface mount assembly. In PTH assembly, component leads pass through the board, and solder is applied to secure them. However, this process is often performed with the aid of machinery rather than traditional soldering irons.
7. Ultrasonic Welding
Ultrasonic welding is a non-contact method that uses high-frequency vibrations to join components. It is particularly useful in microelectronics and applications where precision is critical.
Benefits of Solder-Free Assembly
Reduced Thermal Stress: Soldering can subject components to high temperatures, which may cause damage. Solder-free methods eliminate this risk.
Enhanced Reliability: Solder joints can degrade over time, impacting reliability. Solder-free techniques can improve the long-term stability of electronic assemblies.
Faster Prototyping: Solder-free methods expedite the prototyping process, making it easier to iterate and experiment with circuit designs.
Challenges and Considerations
While solder-free assembly methods offer many advantages, it’s essential to consider the specific requirements of your project. The choice of method depends on factors such as component type, application, and production volume.
In conclusion, the world of electronics assembly is evolving rapidly, with solder-free methods becoming increasingly prevalent. These techniques offer improved reliability, reduced thermal stress, and faster prototyping, making them valuable options in modern electronics manufacturing and design. As electronic technology continues to advance, we can expect even more innovative solder-free assembly methods to emerge, further simplifying the assembly process.
