Understanding resistance and Its role in electronics
Electrical resistance is a fundamental concept in electronics and plays a crucial role in designing and analyzing electronic circuits. It determines how much a component resists the flow of electric current. Resistance is measured in ohms (Ω) and is denoted by the symbol “R.”
Resistance is used in electronics for various purposes, including voltage division, current limiting, and impedance matching. In electronic circuits, resistors are commonly used components to control the flow of current and voltage. Understanding how to calculate the equivalent resistance in series and parallel circuits is essential for designing and troubleshooting electronic systems.
The basics of resistance
Before we dive into the calculations for resistances in series and parallel, let’s briefly review some fundamental concepts:
Resistance (R): Resistance is a property that describes the opposition to the flow of electrical current. It is measured in ohms (Ω).
Series Connection: In a series circuit, components are connected end-to-end, creating a single path for the current. In series, the total resistance is the sum of the individual resistances.
Parallel Connection: In a parallel circuit, components are connected across common points, allowing multiple paths for the current. In parallel, the reciprocal of the total resistance is the sum of the reciprocals of individual resistances.
Calculating resistances in series and parallel

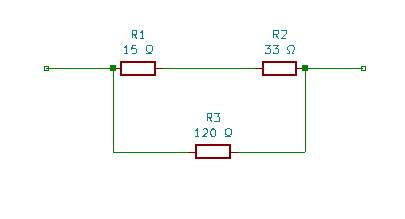

Now, let’s work through an example that combines both series and parallel connections of resistors. We have three resistors, R1, R2, and R3, with the following values:
R1: 15 ohms
R2: 33 ohms
R3: 120 ohms
Step 1: Calculate the total resistance in series
First, we’ll calculate the total resistance when R1 and R2 are connected in series. In a series connection, simply add the resistances together:
Total Series Resistance (R_total_series) = R1 + R2 = 15 Ω + 33 Ω = 48 Ω
Now, we have a single equivalent resistor (48 Ω) representing the combination of R1 and R2 in series.
Step 2: Calculate the total resistance in parallel with R3
Next, we’ll find the total resistance when the equivalent resistor (48 Ω) from the series connection is connected in parallel with R3. In a parallel connection, use the formula:
1 / R_total_parallel = 1 / R_total_series + 1 / R3
Substitute the values:
1 / R_total_parallel = 1 / 48 Ω + 1 / 120 Ω
1 / R_total_parallel = 1/48 + 1/120
Now, solve for R_total_parallel:
R_total_parallel = 1 / (1/48 + 1/120)
R_total_parallel ≈ 32.73 Ω (rounded to two decimal places)
Step 3: Determine the final equivalent resistance
The final equivalent resistance (R_eq) for the entire circuit is now determined. It represents the combination of the series resistors (R1 and R2) connected in parallel with R3.
R_eq ≈ 32.73 Ω
Conclusion
In this tutorial, you’ve learned the basics of resistance and how to calculate equivalent resistances in series and parallel circuits. This knowledge is fundamental in electronics, as it allows you to analyze and design complex circuits effectively. Understanding the principles of series and parallel connections, along with the calculations involved, is essential for working with electronic components and circuits.
