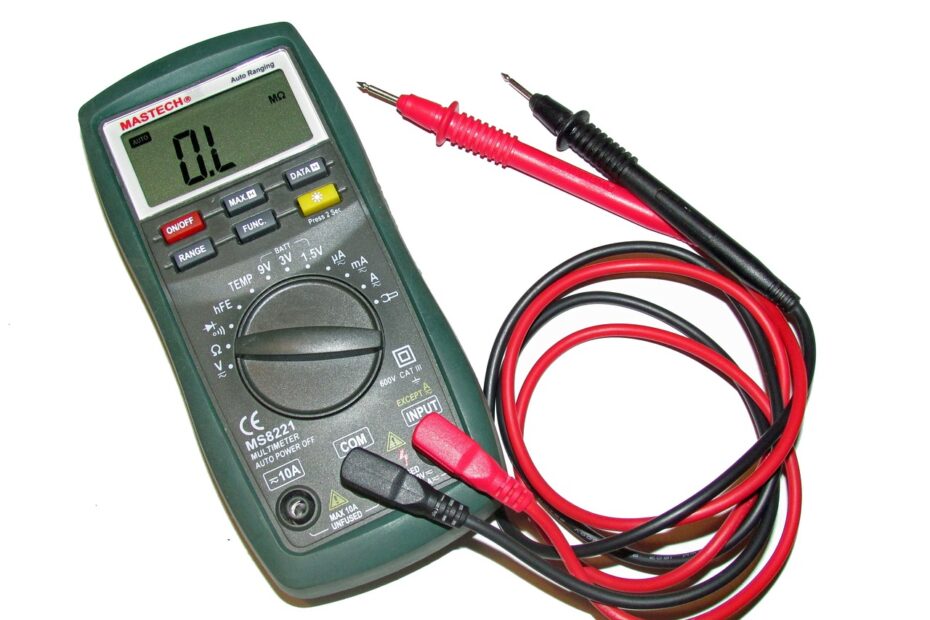

A digital multimeter is an essential tool for anyone working with electrical circuits. Whether you’re a professional electrician or a hobbyist, understanding how to use a multimeter correctly is crucial for safety and accuracy. In this tutorial, we will discuss common mistakes to avoid when using a digital multimeter to ensure safe and accurate measurements.
1. Neglecting safety precautions:
Safety should always be your top priority when working with electricity. Some common safety precautions include:
Wearing appropriate personal protective equipment (PPE), such as insulated gloves and safety goggles.
- Ensuring the equipment is in good condition and properly calibrated.
- Disconnecting power sources before making measurements.
- Avoiding touching live conductors.
- Keeping the work area clean and organized.
2. Incorrect range selection:
Choosing the correct measurement range is crucial to obtain accurate readings. Common mistakes include:
- Using the wrong range, which can damage the multimeter or result in inaccurate measurements.
- Not switching the range to a higher value when expecting a high voltage or current.
- Forgetting to zero the multimeter (if required) before making measurements.
3. Misinterpreting the display:
Digital multimeters have a display that shows readings in various formats. Common errors involve:
- Misreading the decimal point, leading to an order-of-magnitude error.
- Not understanding the unit of measurement displayed (e.g., volts, amps, ohms).
- Misinterpreting negative values and polarity.
4. Measuring resistance with power applied:
Measuring resistance in a live circuit can cause problems, such as:
- Creating inaccurate readings due to parallel paths in the circuit.
- Damaging the multimeter and the circuit under test.
- Risk of electrical shock if not handled correctly.
5. Using the wrong probe or lead:
The choice of probes or leads can impact measurement accuracy:
- Using a probe not rated for the measurement can result in damage or inaccurate readings.
- Mixing up the probe connections can lead to incorrect measurements and even damage the multimeter.
6. Ignoring the input impedance:
A digital multimeter has an input impedance that can affect voltage measurements:
- Neglecting to consider input impedance can result in voltage drop and inaccurate readings.
- For high-impedance circuits, use a multimeter with a high input impedance setting.
7. Not allowing time for stable readings:
In some cases, it takes time for a stable reading to be displayed:
- Not allowing sufficient time for the multimeter to stabilize can lead to inaccurate measurements.
8. Overloading the multimeter:
Exceeding a multimeter’s maximum ratings can cause damage or inaccuracies:
- Be aware of the maximum voltage and current limits of your multimeter.
- Use appropriate external current shunts for high current measurements.
9. Using a multimeter with low battery:
Low battery voltage can lead to incorrect measurements:
- Regularly check and replace the multimeter’s batteries to ensure accurate results.
10. Neglecting regular calibration:
Over time, multimeters can drift from their calibration. Avoid this by:
- Periodically calibrating your multimeter or sending it to a calibration service.
- Following the manufacturer’s recommendations for calibration intervals.
Conclusion:
Using a digital multimeter correctly is vital for safe and accurate electrical measurements. By avoiding these common mistakes, you can ensure that your multimeter serves as a reliable tool in your electrical work. Always prioritize safety, select the right settings, and pay attention to the details to achieve precise and trustworthy measurements.
