Autonomous navigation (SLAM for Beginners) : How can a robot navigate with simple sensors?

Autonomous navigation is the ability of a robot to move through an environment without external control while simultaneously perceiving, understanding, and mapping its surroundings. This task, once limited to advanced research labs, has become increasingly accessible to hobbyists thanks to low-cost components and open-source software. A good example is the RPLIDAR A1, which offers 360° scanning with up to 8,000 samples per second for under $150—previously unthinkable for amateurs. Similarly, affordable microcontrollers like the Raspberry Pi 4 (starting at $35) or the ESP32 (under $10) provide sufficient processing power for real-time localization tasks. Central to autonomous navigation is SLAM—Simultaneous Localization and Mapping—a method that allows robots to build a map of an unknown environment while tracking their own position within it. SLAM integrates data from sensors such as ultrasonic modules (with typical ranges of 2–400 cm), low-cost IMUs, or affordable LIDAR units to generate a consistent map. With platforms like ROS (Robot Operating System) and lightweight SLAM libraries such as TinySLAM or GMapping, even beginners can start building robots that understand their world in 2D or 3D. As a result, autonomous navigation is no longer reserved for research institutions—it’s a real possibility for dedicated makers.

What is SLAM?

SLAM (Simultaneous Localization and Mapping) is a computational method that enables a robot to construct a map of an unknown environment while simultaneously determining its position within it. This dual challenge is fundamental in robotics and is used in systems like the iRobot Roomba, which maps rooms for efficient cleaning, or NASA’s Perseverance rover, which uses visual SLAM to navigate Mars. SLAM combines data from sensors—such as LIDAR, cameras, or IMUs—with algorithms like Extended Kalman Filters or Particle Filters to update both the map and the robot’s pose in real time. For instance, Google’s Cartographer or GMapping in ROS allows even hobbyists to implement 2D SLAM using affordable sensors like the RPLIDAR A1 and a Raspberry Pi.

Why SLAM is crucial

• It enables robots to explore unknown spaces.
• It improves autonomy without GPS or predefined maps.
• It opens the door to advanced applications like obstacle avoidance and path planning.

Essential components of SLAM

To implement basic SLAM, a robot typically needs:

• Sensors: To perceive the environment.
• Odometry: To estimate movement (via wheels or inertial sensors).
• Processing unit: Arduino, Raspberry Pi, or ESP32 for computation.
• SLAM algorithm: To calculate map and location.

Low-cost sensors for beginners

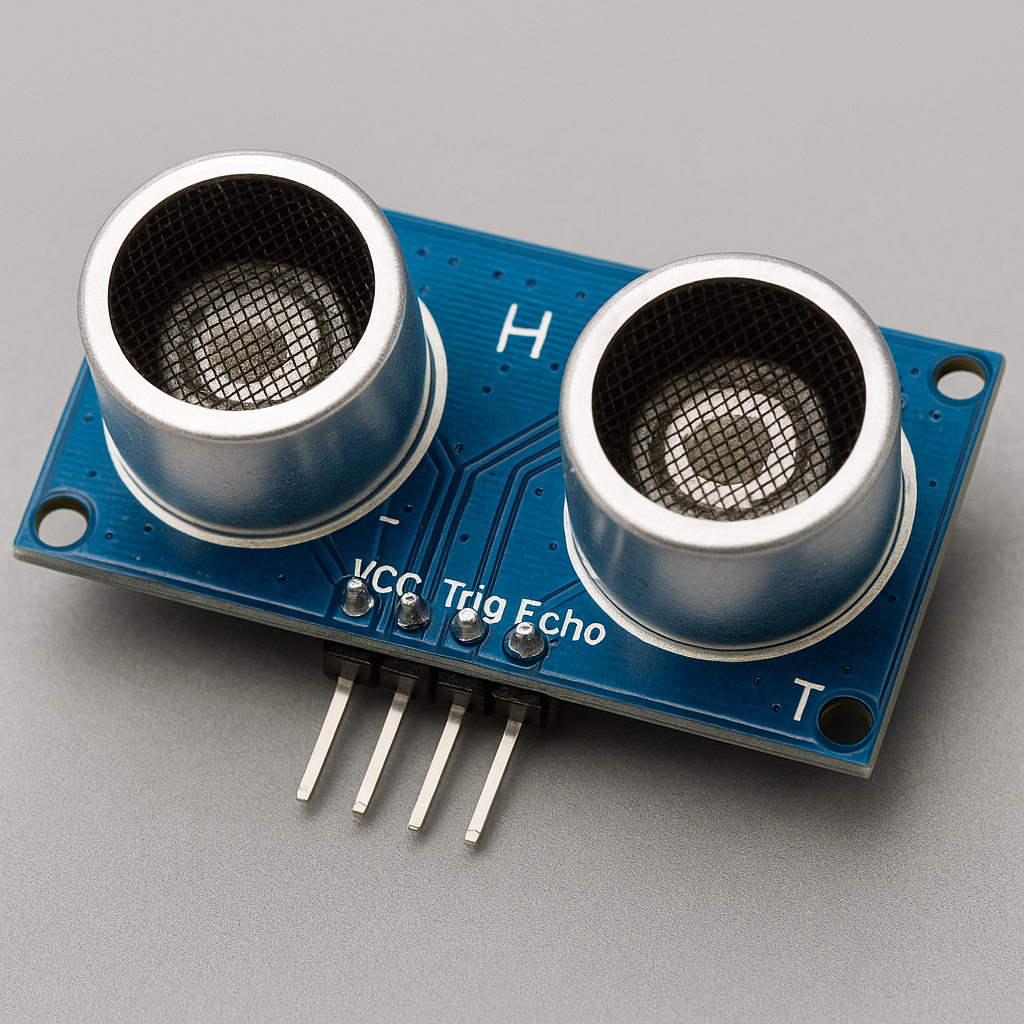

1. Ultrasonic sensors (e.g., HC-SR04)

Ultrasonic sensors measure distance by emitting sound waves and calculating the time it takes for the echo to return. Typically, these sensors, such as the HC-SR04, offer ranges from 2 cm to 4 meters, with an accuracy of ±3 mm. They are inexpensive, costing around $1–$5, and are easy to integrate with microcontrollers like Arduino. Despite their affordability, ultrasonic sensors have a narrow field of view (usually about 15–30 degrees) and can suffer from noisy data due to surface reflections or irregular objects. This can lead to errors in distance readings, especially in complex environments. However, they are still widely used for basic obstacle detection and simple mapping tasks.

2. Infrared sensors

Infrared (IR) proximity sensors are commonly used for short-range obstacle detection, typically effective within a range of 1 to 80 cm, depending on the sensor’s power and environment. These sensors, such as the Sharp GP2Y0A21YK0F, offer a resolution of 1 cm and are ideal for applications like collision avoidance in robots. While they are not suitable for large-scale mapping due to their limited range and sensitivity to environmental conditions (e.g., light interference), they are highly effective in controlled spaces. Infrared sensors are affordable, with prices ranging from $3 to $10, and are commonly used in robots like Roombas or robotic arms for close-range navigation and obstacle detection.

3. Affordable LIDAR (e.g., RPLIDAR A1/A2)

LIDAR (Light Detection and Ranging) provides 360-degree distance measurements, offering high accuracy and precision, typically with a range of up to 12 meters. The RPLIDAR A1, a popular entry-level LIDAR sensor, is ideal for beginners and is compatible with platforms like Raspberry Pi or ROS. It offers 360° scanning at a rate of 5.5 Hz and an angular resolution of 0.36°, allowing for detailed mapping of environments. While more expensive than ultrasonic sensors, which can cost as little as $1–$5, the RPLIDAR A1 remains affordable for enthusiasts, priced between $100 and $150. LIDAR is particularly beneficial for creating precise 2D or 3D maps and is used in autonomous vehicles, drones, and robotic applications where high spatial awareness is essential. Its versatility and accuracy make it a valuable tool for hobbyists aiming to build more advanced navigation and mapping systems.

How SLAM works (Simplified)

1. Sensing the environment

The robot uses its sensors to gather data points (e.g., distances to walls). These are used to create a basic map structure.

2. Estimating position

The robot estimates how it has moved using wheel encoders or IMU (Inertial Measurement Unit). This estimation helps determine where new sensor data belongs on the map.

3. Updating the map

Using algorithms like Extended Kalman Filter (EKF) or Particle Filter, the robot refines its position and updates the environment model.

4. Loop closure

When the robot revisits a known location, it corrects its map and position errors—a crucial step for long-term accuracy.

Popular SLAM libraries & tools

• GMapping: Classic 2D SLAM, great for beginners using ROS.
• Cartographer (by Google): More advanced but robust for LIDAR-based SLAM.
• RTAB-Map: Good for 3D mapping and visual SLAM.
• TinySLAM: Lightweight and beginner-friendly.

Beginner-Friendly Hardware Setup

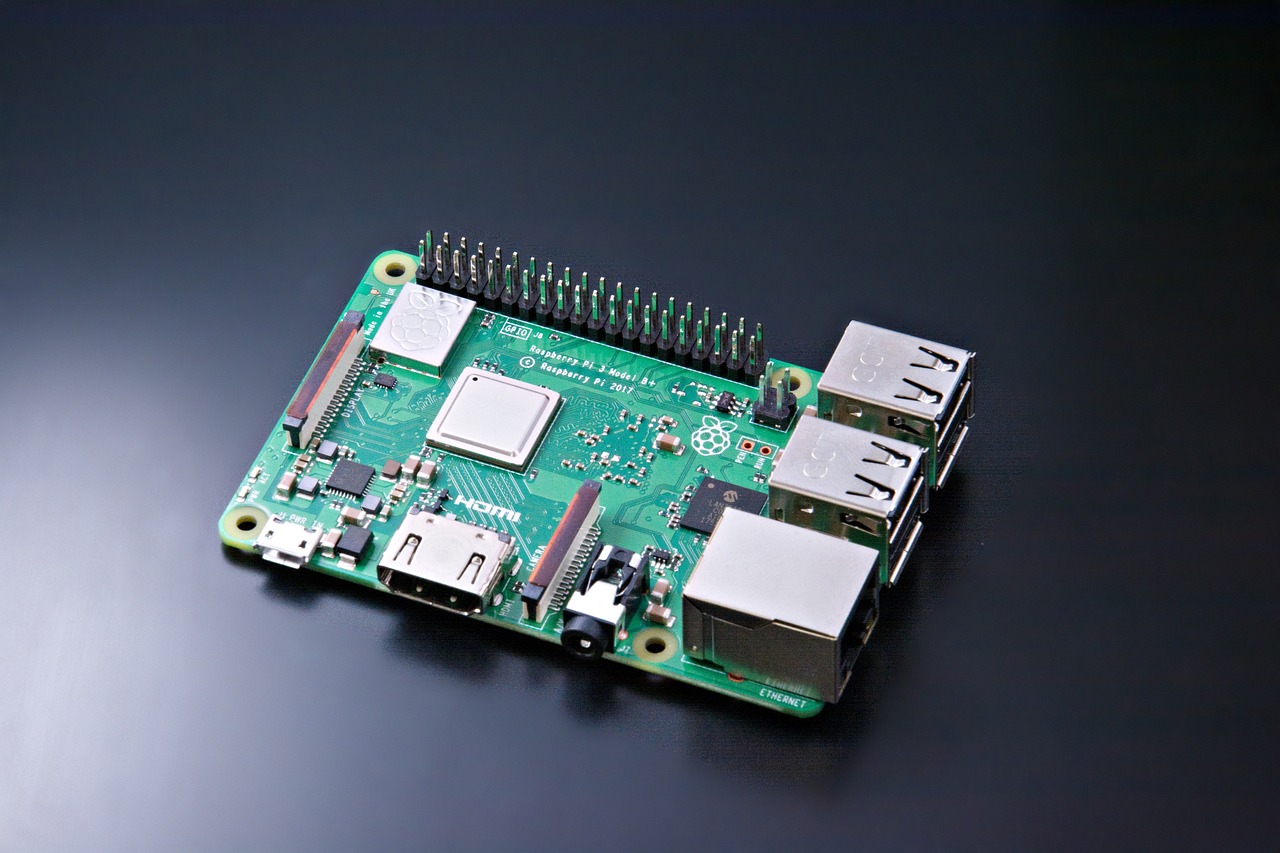

Microcontroller: Raspberry Pi 4
Sensors: RPLIDAR A1 + IMU (MPU6050)
Motor control: L298N or similar motor driver
Power: Li-ion 18650 battery pack (7.4V with regulation)

Basic SLAM implementation example (with ROS)

This is a sample setup to get SLAM running with a LIDAR and ROS on a Raspberry Pi:

# Install ROS on Raspberry Pi (e.g., ROS Noetic)
sudo apt install ros-noetic-slam-gmapping

# Launch robot with RPLIDAR
roslaunch rplidar_ros view_rplidar.launch

# Run SLAM
rosrun gmapping slam_gmapping scan:=/scan

Common challenges for beginners

• Sensor noise: Use filters (e.g., Kalman or averaging) to clean data.
• Wheel slip or encoder errors: Combine with IMU or visual feedback.
• Lack of processing power: Offload computation to PC if Pi/Arduino struggles.

Tips for success

• Start in small, controlled environments (like a room).
• Visualize data in real time using RViz or similar tools.
• Log sensor data for offline analysis and debugging.
• Test individual components before running full SLAM loop.

Conclusion

SLAM may seem like advanced robotics, but with today’s open-source tools and affordable sensors, it’s entirely within reach for motivated amateurs. Whether you’re building a robot for home automation, exploration, or education, mastering autonomous navigation is a rewarding and empowering milestone.

Start small, experiment often, and don’t hesitate to dive into the open-source robotics community for support and inspiration!
