Installing an automatic LED nightlight in your bedroom offers significant benefits. This smart nightlight is equipped with a light sensor that automatically adjusts its brightness based on the room’s darkness levels. When the room becomes too dark, the nightlight instantly turns on, providing a soft and soothing glow. This feature is especially beneficial at night, as it prevents disruptions caused by brighter light sources, helping to maintain an environment conducive to sleep. The dim light of the nightlight allows for easy navigation in the room without causing glare, promoting peaceful sleep and ensuring a smooth transition into the night. Additionally, this practical solution helps create a relaxing atmosphere, ideal for fostering restorative sleep.

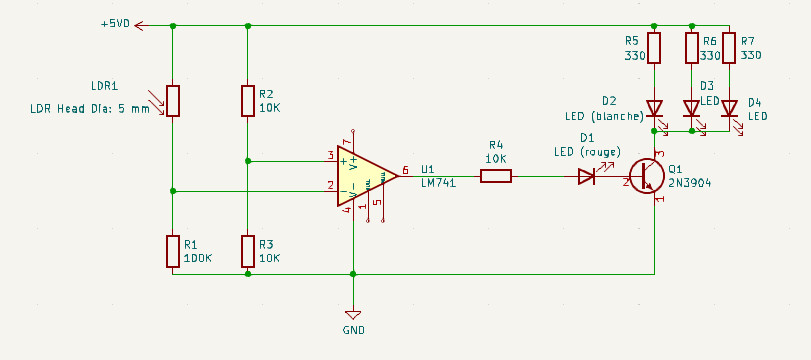

To create an automatic nightlight, you can assemble a simple circuit using the following components: a light-dependent resistor (LDR), an LM741 operational amplifier, resistors, three white LEDs, and a 2N3904 transistor. In this circuit, the LM741 acts as a voltage comparator, triggering the lighting based on the sensitivity of the 5mm LDR and resistor R1. The 2N3904 transistor is responsible for powering the three white LEDs when it receives an adequate current at its base. This clever design ensures automatic lighting control by adjusting brightness according to ambient conditions, providing a practical and energy-efficient solution for an automatic nightlight.
What you need to know about the LM741
The LM741 (or UA741) is a widely used operational amplifier, popular in analog electronics due to its reliable technical characteristics and versatility. This integrated component typically operates within a supply voltage range of ±5 to ±18 volts, making it compatible with various circuit configurations. Its typical bandwidth is around 1.5 megahertz, providing excellent frequency response, which makes it suitable for a variety of applications, including active filters, differential amplifiers, and regulation circuits. The LM741 features zero input current, low power consumption, and excellent thermal stability, ensuring consistent performance under varying conditions. Due to its popularity and proven performance, the LM741 remains a common choice for electronics engineers and circuit designers.

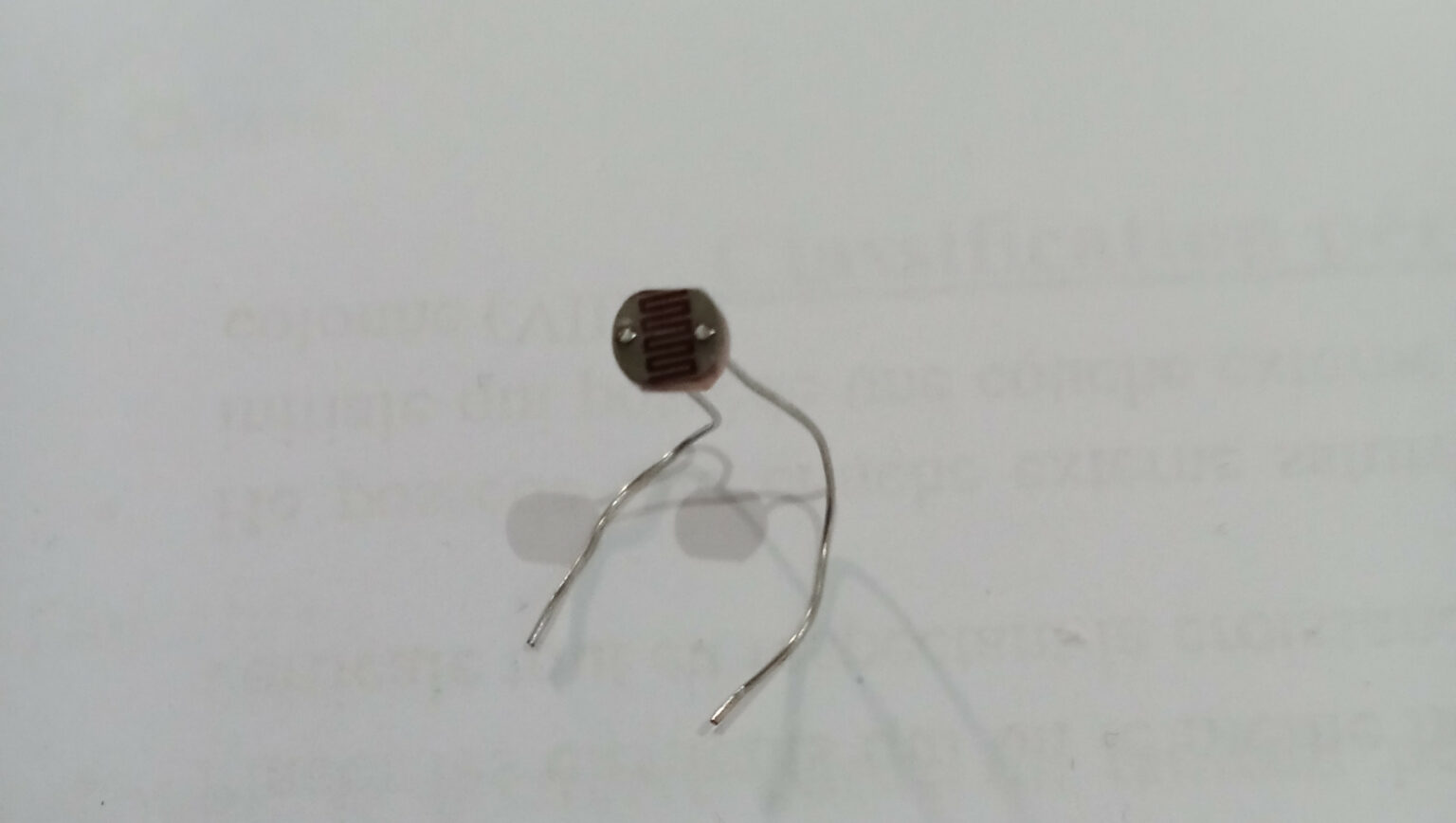

What you need to know about the LDR
Photoresistors, also known as LDRs (Light-Dependent Resistors), are light-sensitive electronic components, and the 5mm variant has some notable technical characteristics. These devices are primarily used to measure ambient light intensity. In darkness, an LDR exhibits a relatively high resistance, often reaching several megaohms, while its resistance significantly decreases as incident light increases. Generally, these photoresistors offer enhanced sensitivity within the visible light spectrum. The spectral response range, light resistance, and sensitivity may vary depending on the specific LDR model. These characteristics make them an ideal choice for various applications, including automatic lighting control, ambient light sensors, and other electronic devices requiring a variable response to surrounding light.

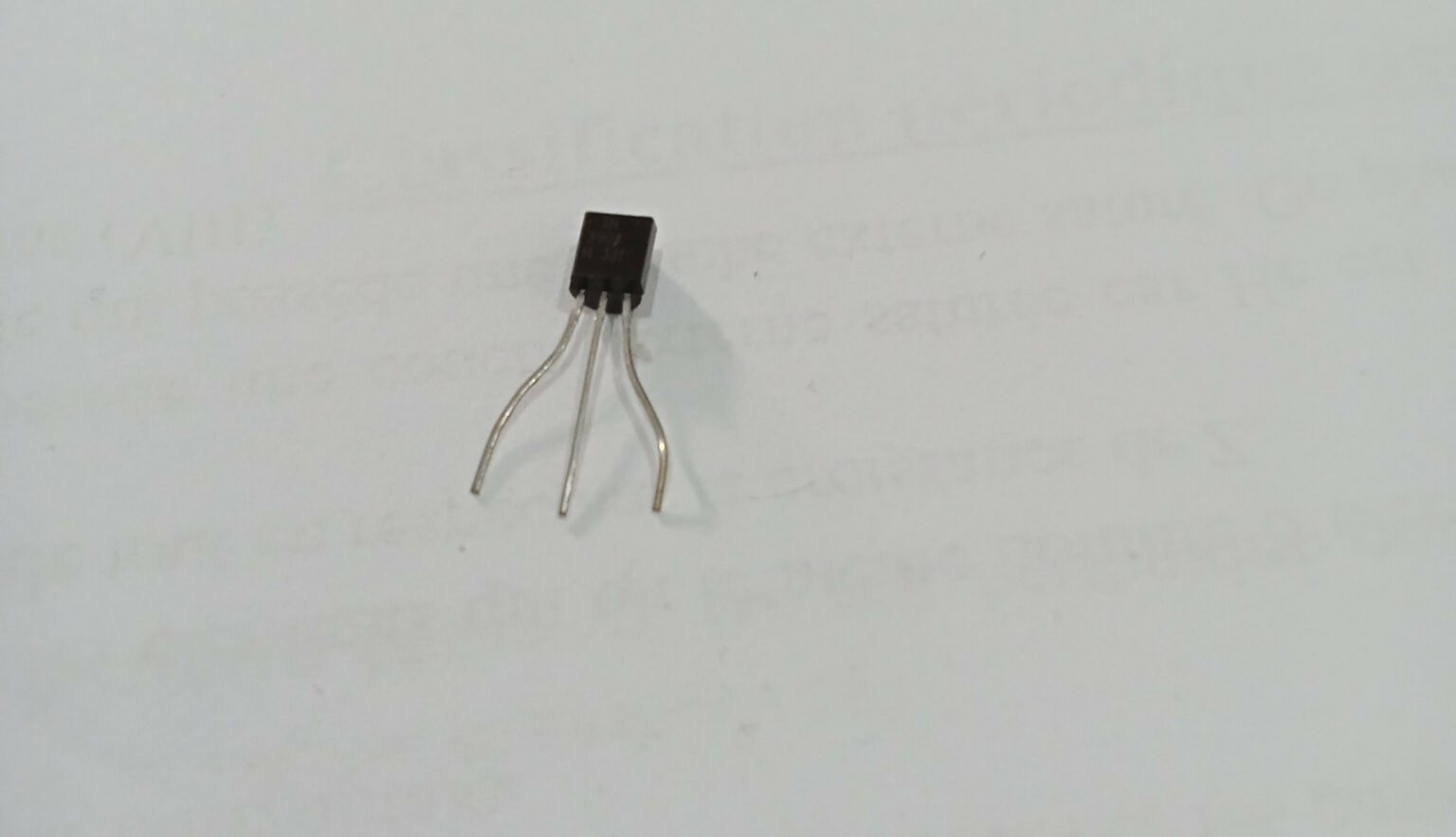

What you need to know about the 2N3904 transistor
The 2N3904 NPN bipolar transistor is an electronic component widely used in various applications due to its reliable technical characteristics. With a maximum collector voltage of 40 volts, this transistor can handle moderate loads. It has a continuous collector current capability of 200 mA, making it suitable for low to medium power circuits. The 2N3904 features a high frequency-gain transition, typically around 300 MHz, making it an efficient choice for moderate bandwidth applications. Its direct current current gain (hFE) typically ranges from 100 to 300, providing reliable signal amplification. This transistor is commonly used in signal amplification configurations, low-power audio amplifiers, oscillators, and other electronic circuits where fast switching and signal amplification are required. With its balanced electrical characteristics and reliability, the 2N3904 remains a preferred component in the field of electronics.

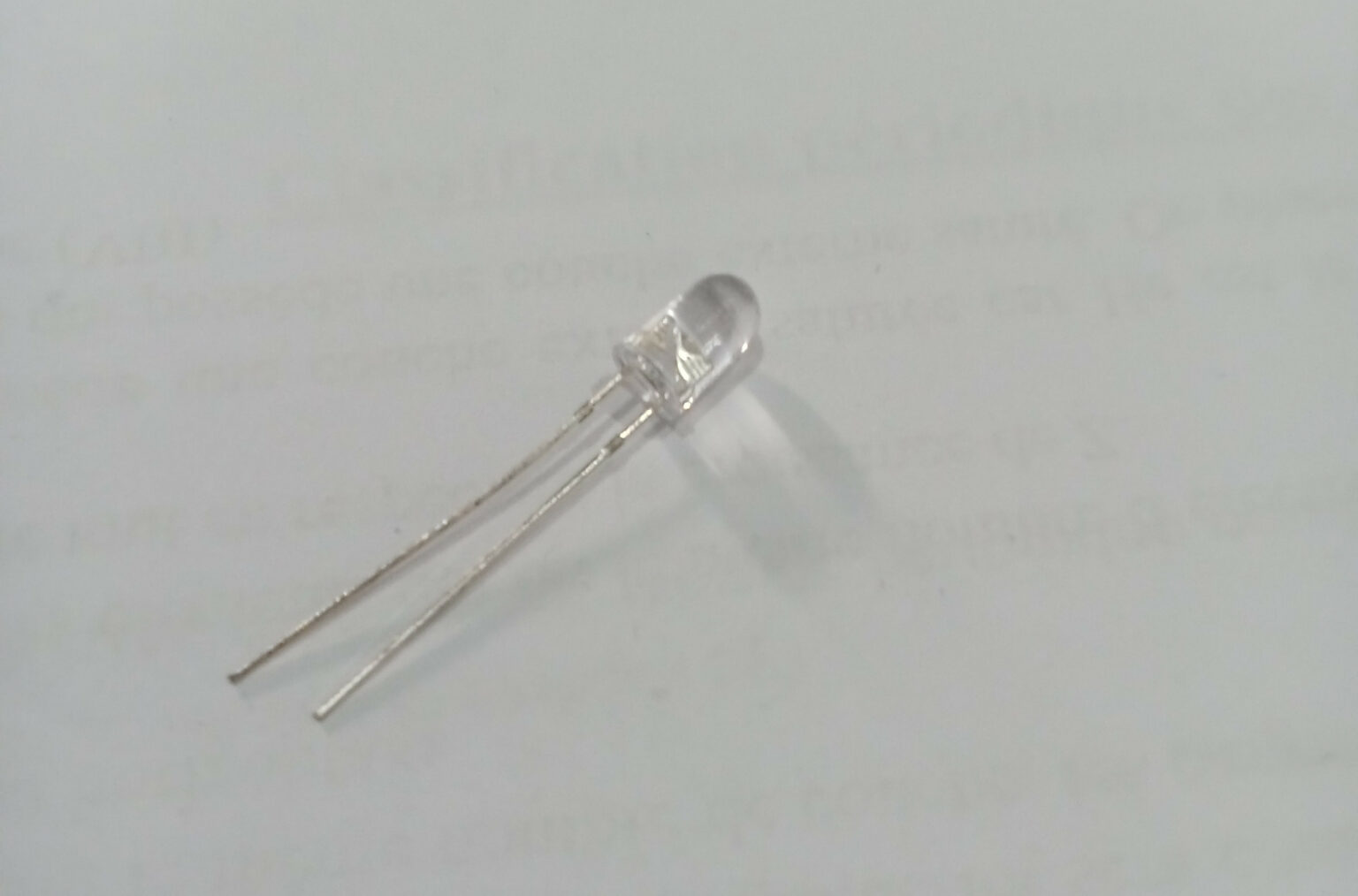

What you need to know about white LED diodes
White light-emitting diodes (LEDs) are electronic components that emit white light when polarized in the forward direction. The technical characteristics of white LEDs include low energy consumption, long lifespan, and high luminous efficiency. Typically, the forward operating voltage for white LEDs is around 3 to 3.5 volts, although this can vary depending on the specific model. These LEDs are often designed to operate with a nominal current of a few milliamps. Due to their luminous efficiency, they are widely used in various lighting applications, ranging from portable electronic devices to residential and commercial lighting systems. White LEDs are also available in a range of color temperatures, offering flexibility to suit different aesthetic preferences and lighting requirements. Their durability, low operational cost, and ability to produce high-quality white light make them essential components in the modern lighting industry.
