Non-contact voltage testers, essential for electricians, hobbyists, and DIY enthusiasts, offer a swift and secure method to identify electrical voltage without direct contact with live conductors. This tutorial delves into their features, versatile applications, and optimal usage guidelines. From troubleshooting electrical systems to enhancing safety during home inspections, these testers play a pivotal role. Whether in HVAC diagnostics or automotive assessments, their applications are diverse. By adhering to safety protocols, regularly calibrating, understanding proximity dynamics, ensuring proper grounding, and acknowledging limitations, users can harness the full potential of non-contact voltage testers. This guide empowers individuals to employ these devices effectively, promoting both efficiency and safety in various electrical scenarios.
Understanding non-contact voltage testers
What is a non-contact voltage tester?
A non-contact voltage tester is a handheld device that detects the presence of alternating current (AC) voltage in electrical circuits without the need for direct contact. It typically consists of a probe or sensor at the tip and a visual or audible indicator to signal the presence of voltage.
How non-contact voltage testers work
These testers operate based on the principle of capacitive coupling. When the sensor of the tester is brought close to an energized conductor, the tester can detect the electric field surrounding the conductor, indicating the presence of voltage.
Features and types of non-contact voltage testers
Basic features
- Visual and audible indicators: Most testers have LED lights or an LCD display to visually indicate the presence of voltage. Audible alarms may also be present.
- Sensitivity adjustment: Some models allow users to adjust the sensitivity to detect different voltage levels.
Flashlight function: Many testers come with built-in flashlights for convenience in low-light conditions.
Types of non-contact voltage testers

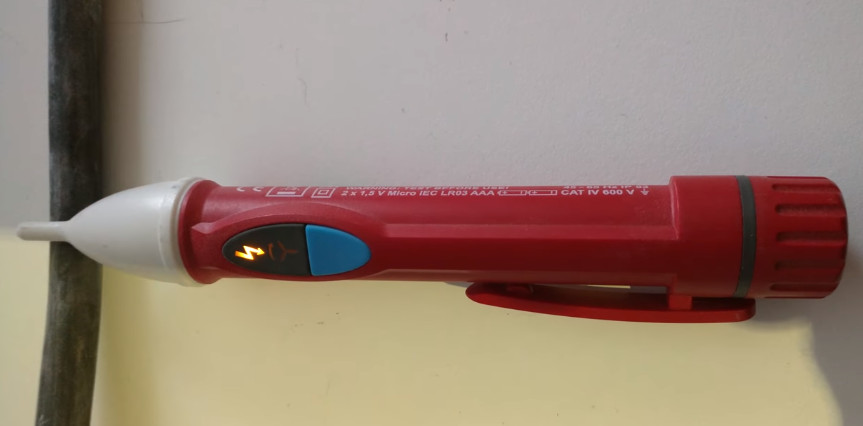

- Pen-style testers: These are shaped like pens and have a tip for proximity detection.
Clamp-style testers: Designed like clamps, these can be clamped around a wire to detect voltage. - Stick-style testers: These have a long, slender design for reaching into tight spaces.
Applications and best practices
Applications
- Electrical troubleshooting: Quickly identify live wires or circuits.
Home inspections: Ensure safety by checking outlets, switches, and wiring. - HVAC systems: Test for voltage in heating and cooling systems.
Automotive diagnostics: Check for electrical issues in vehicles.
Best practices for using non-contact voltage testers
- Safety first: Always follow safety procedures, and wear appropriate personal protective equipment.
- Calibration check: Regularly verify the accuracy of the tester using a known voltage source.
- Proximity matters: Bring the tester close to the suspected voltage source, but avoid direct contact.
- Verify grounding: Ensure a reliable ground connection to improve accuracy.
- Understand limitations: Non-contact testers may not work well in certain conditions, such as on shielded or ungrounded cables.
Conclusion
Non-contact voltage testers are indispensable tools for anyone working with electricity. By understanding their features, types, applications, and best practices, you can use these testers safely and effectively in various scenarios, enhancing both your efficiency and safety. Always refer to the manufacturer’s instructions for specific details about your non-contact voltage tester model.
